| Model | TIG500P AC/DC |
|---|---|
| Input Power | 3 Phase, 415V ±15%, 50/60Hz |
| Input Power Capacity | 24.2 KVA |
| No Load Voltage | 75V |
| Output Current Range (TIG) | 10–500A |
| Output Current Range (MMA) | 20–500A |
| Output Voltage Range (TIG) | 10–30V |
| Duty Cycle | 60% @ 500A |
| Pulse Frequency | 0.5–200 Hz |
| AC Frequency | 20–250 Hz |
| AC Balance | 10–90% |
| Cooling | Forced Air Cooling |
| Dimensions (L × W × H) | 620 × 280 × 540 mm |
| Weight | 40 Kg |

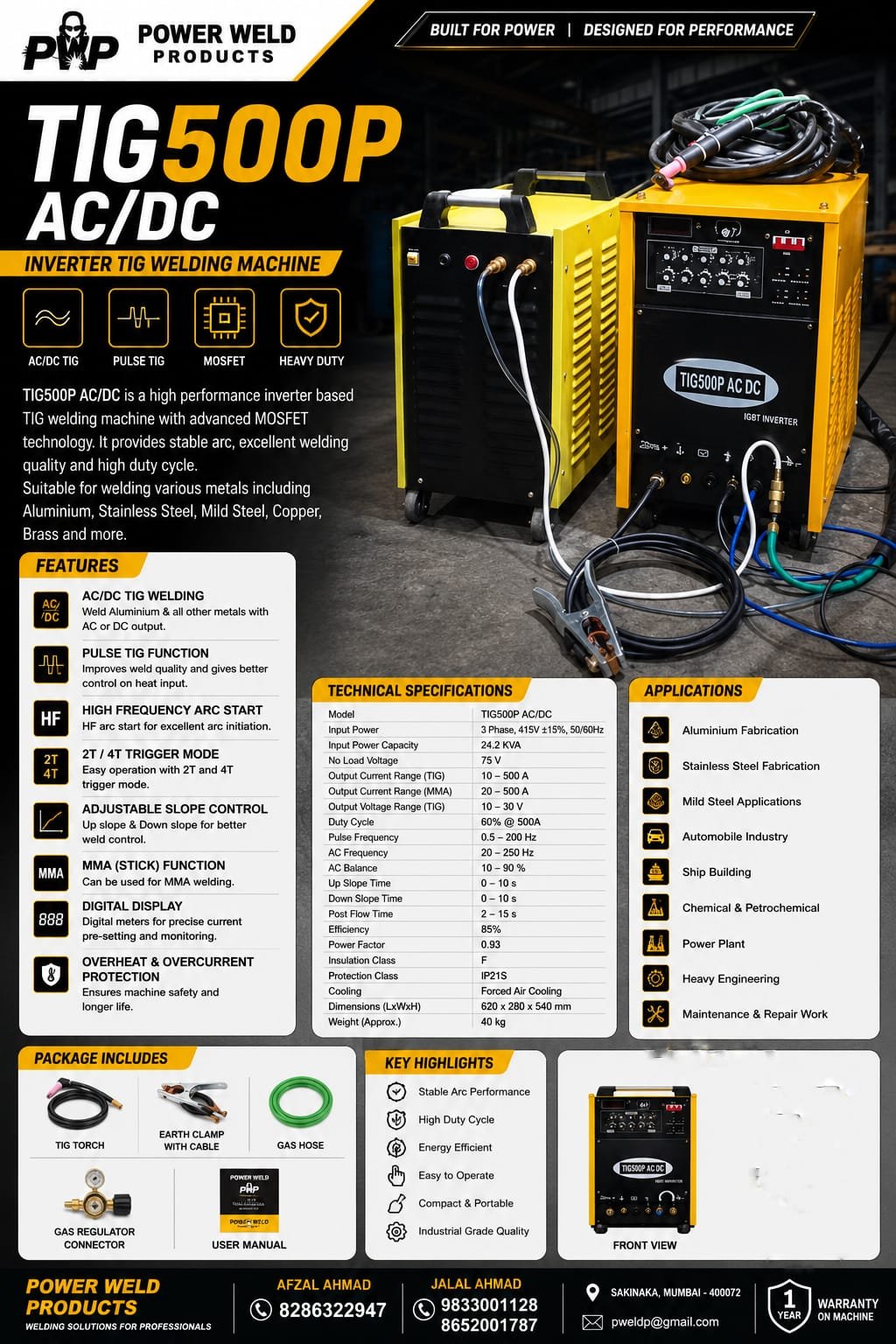

Power Weld Products TIG 500P AC/DC is a heavy-duty inverter TIG welding machine designed for professional and industrial welding applications. With advanced MOSFET technology, AC/DC TIG, pulse TIG and MMA functions, it provides stable arc performance and precise control. The machine supports welding of aluminium, stainless steel, mild steel, copper and brass. High-frequency arc start, adjustable slope control, digital display and multiple protection features make it suitable for fabrication, shipbuilding, chemical and petrochemical industries, power plants, heavy engineering and maintenance work.
