| Model | TIG 200A |
|---|---|
| Input Voltage | AC 220V ±15%, 1 Phase, 50/60Hz |
| Input Power | 6.5 KVA |
| Output Current | 10–200A |
| No Load Voltage | 56V |
| Duty Cycle | 60% @ 200A |
| TIG Current | DC |
| Efficiency | 85% |
| Power Factor | 0.73 |
| Insulation Class | F |
| Protection Class | IP21S |
| Weight | 5.5 Kg (Approx.) |
| Dimensions (L × W × H) | 370 × 150 × 230 mm |
| Application | TIG Welding (DC) |

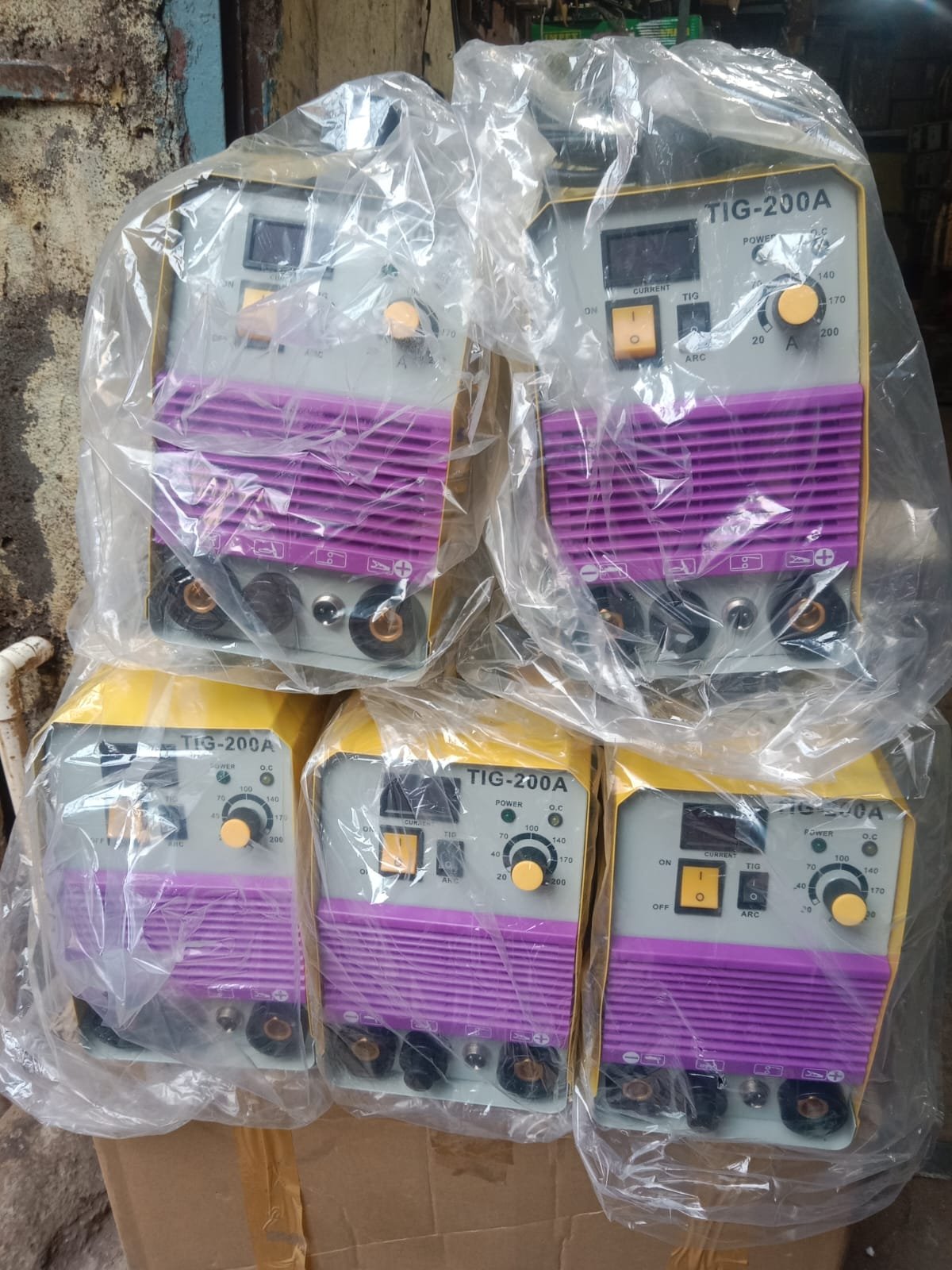

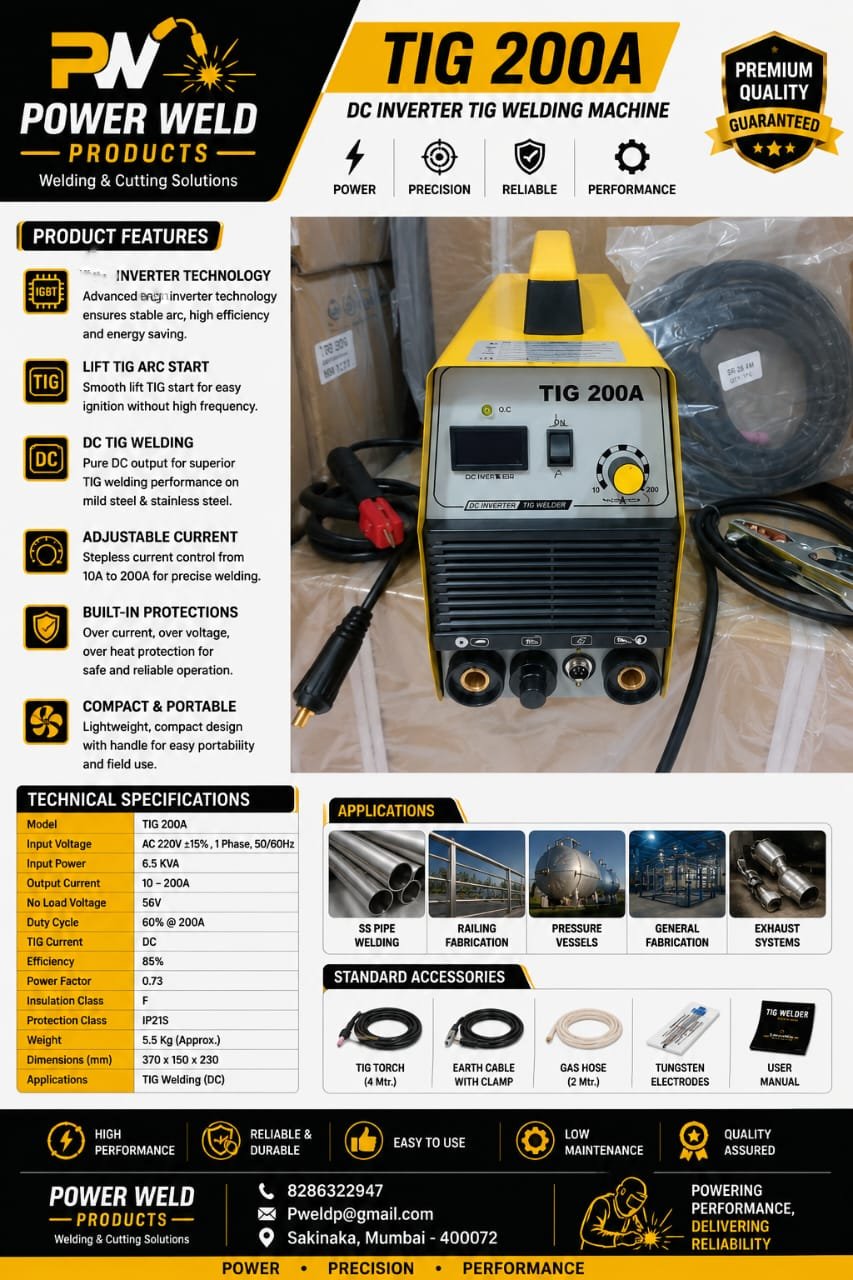

Power Weld Products TIG 200A is a compact DC inverter TIG welding machine designed for precise and reliable welding of mild steel and stainless steel. It features advanced IGBT inverter technology, lift TIG arc starting, adjustable welding current from 10A to 200A, and built-in over-current, over-voltage and overheat protection. With its lightweight design and 60% duty cycle at 200A, it is suitable for fabrication, SS pipe welding, railing work, pressure vessels, exhaust systems and general industrial applications.
