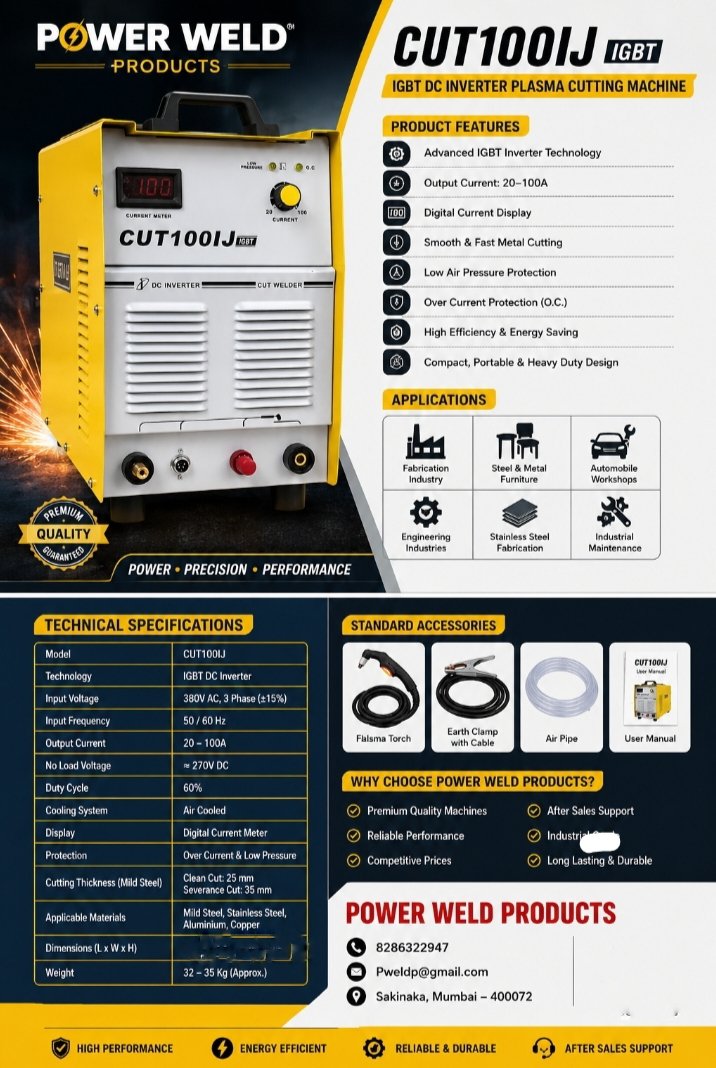

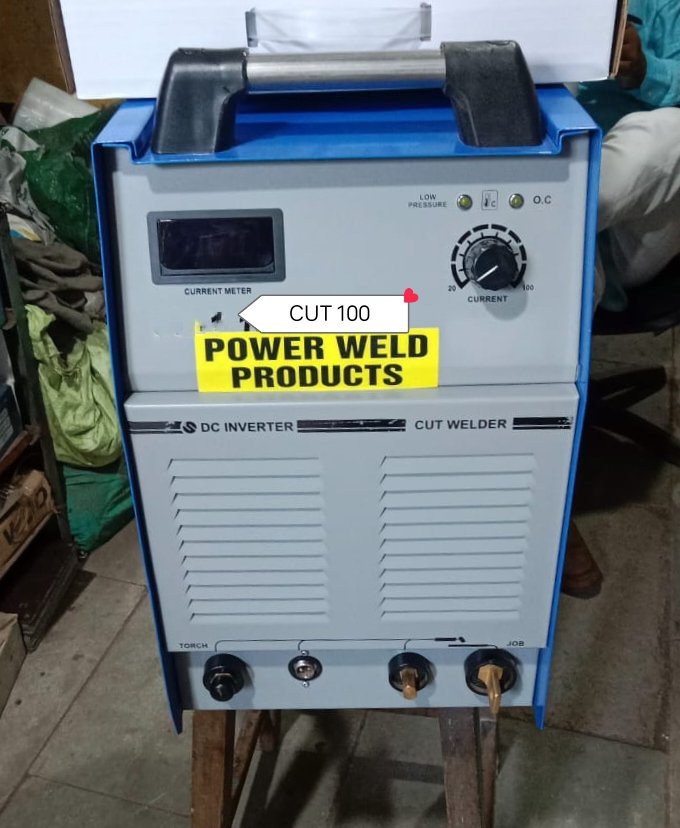

CUT 100 IJ Plasma Cutting Machine
| Model | CUT100IJ |
|---|---|
| Technology | IGBT DC Inverter |
| Input Voltage | 380V AC, 3 Phase (±15%) |
| Input Frequency | 50 / 60 Hz |
| Output Current | 20 – 100A |
| No Load Voltage | 270V DC |
| Duty Cycle | 60% |
| Cooling System | Air Cooled |
| Display | Digital Current Meter |
| Protection | Over Current & Low Air Pressure Protection |
| Cutting Thickness (Mild Steel) | Clean Cut: 25 mm Severance Cut: 35 mm |
| Applicable Materials | Mild Steel, Stainless Steel, Aluminium, Copper |
| Dimensions (L × W × H) | Not Specified |
| Weight | 32 – 35 Kg (Approx.) |
