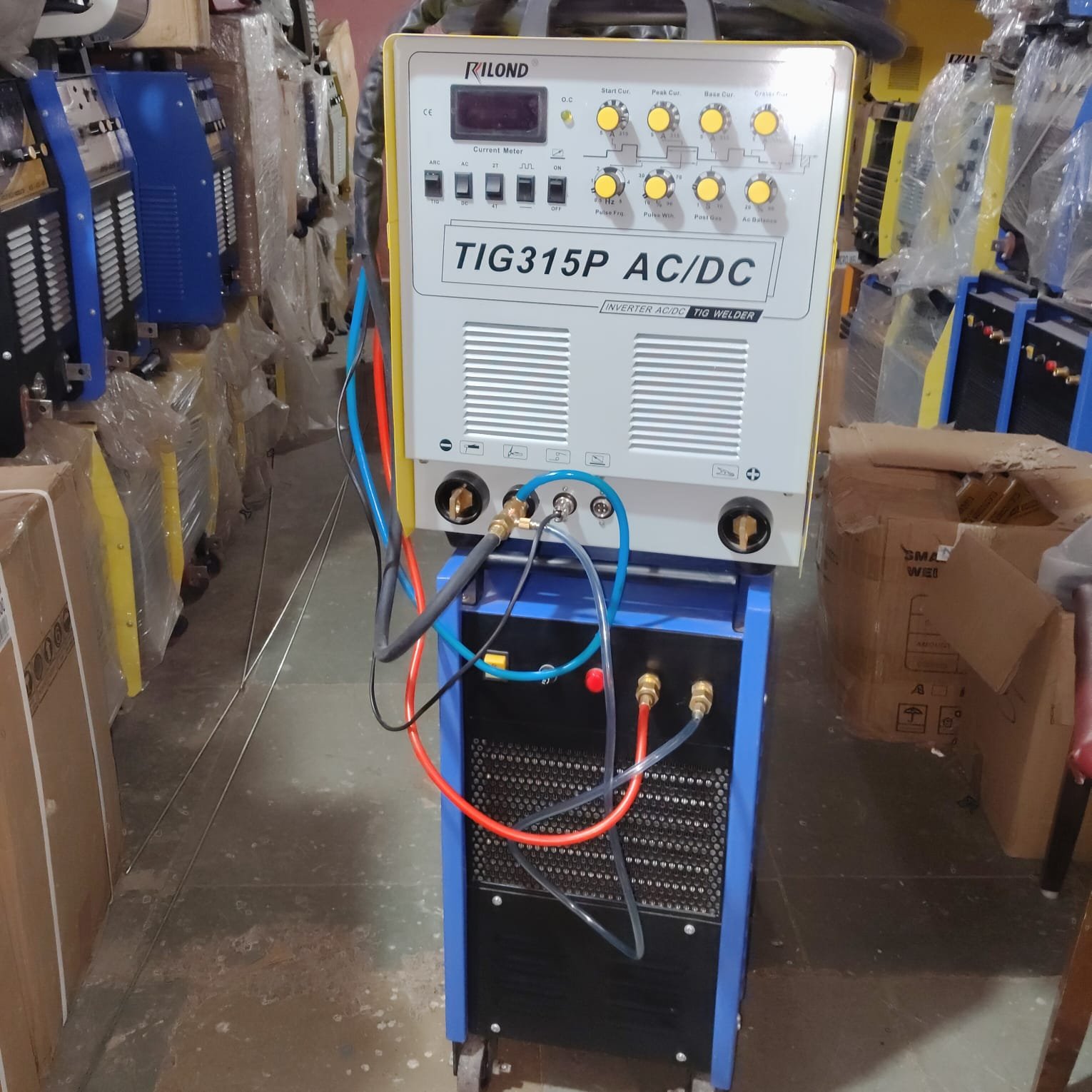

TIG-315A IGBT Inverter TIG Welding Machine

Model TIG-315A
Technology IGBT Inverter
Input Voltage 415V ±15%, 3 Phase, 50/60Hz
Input Power 10.6 KVA
Output Current Range 15–315A
No Load Voltage 56V
Duty Cycle 60% @ 315A
Efficiency 85%
Power Factor 0.93
Insulation Class F
Protection Class IP21S
Weight 38 Kg (Approx.)
Dimensions (L × W × H) 640 × 320 × 730 mm
Application TIG Welding (DC)
Cooling System Water Cooling Unit

Power Weld Products TIG-315A is a heavy-duty IGBT inverter TIG welding machine designed for professional and industrial welding applications. It delivers a maximum output of 315A with a 60% duty cycle, providing stable and consistent welding performance. The machine features HF arc start, DC TIG output, adjustable welding current, multi-level protection and an efficient cooling system. Its durable wheeled design makes it suitable for SS and MS fabrication, chemical plants, food processing equipment, piping systems, automotive, railway, pressure vessels and general engineering.
