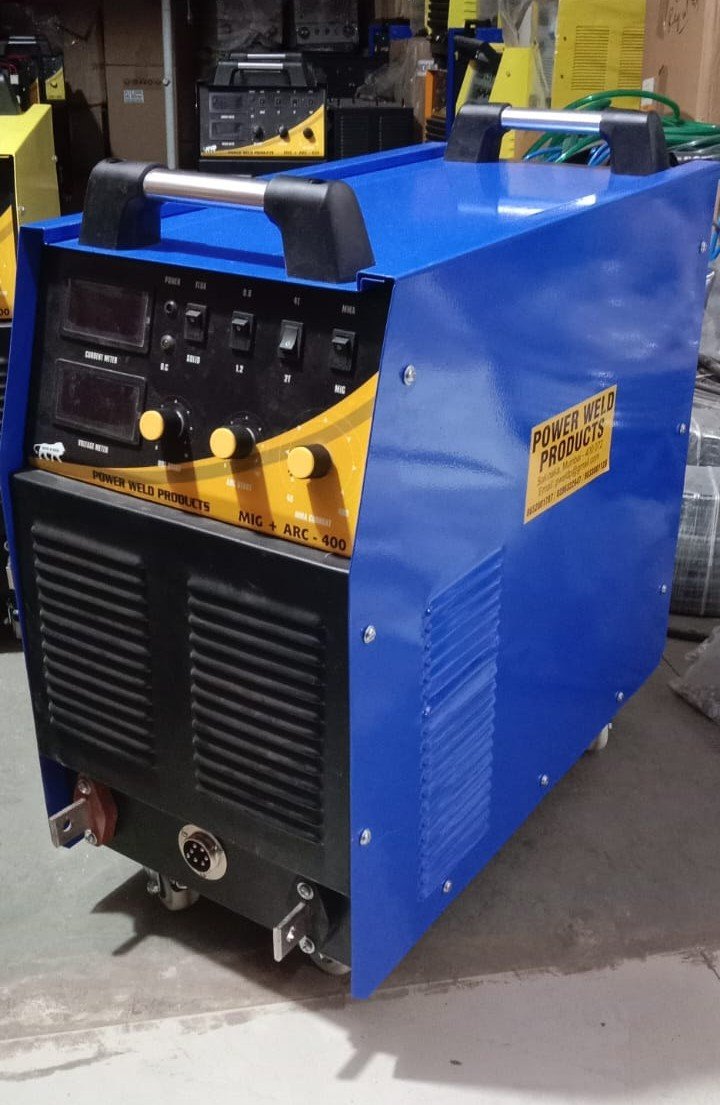

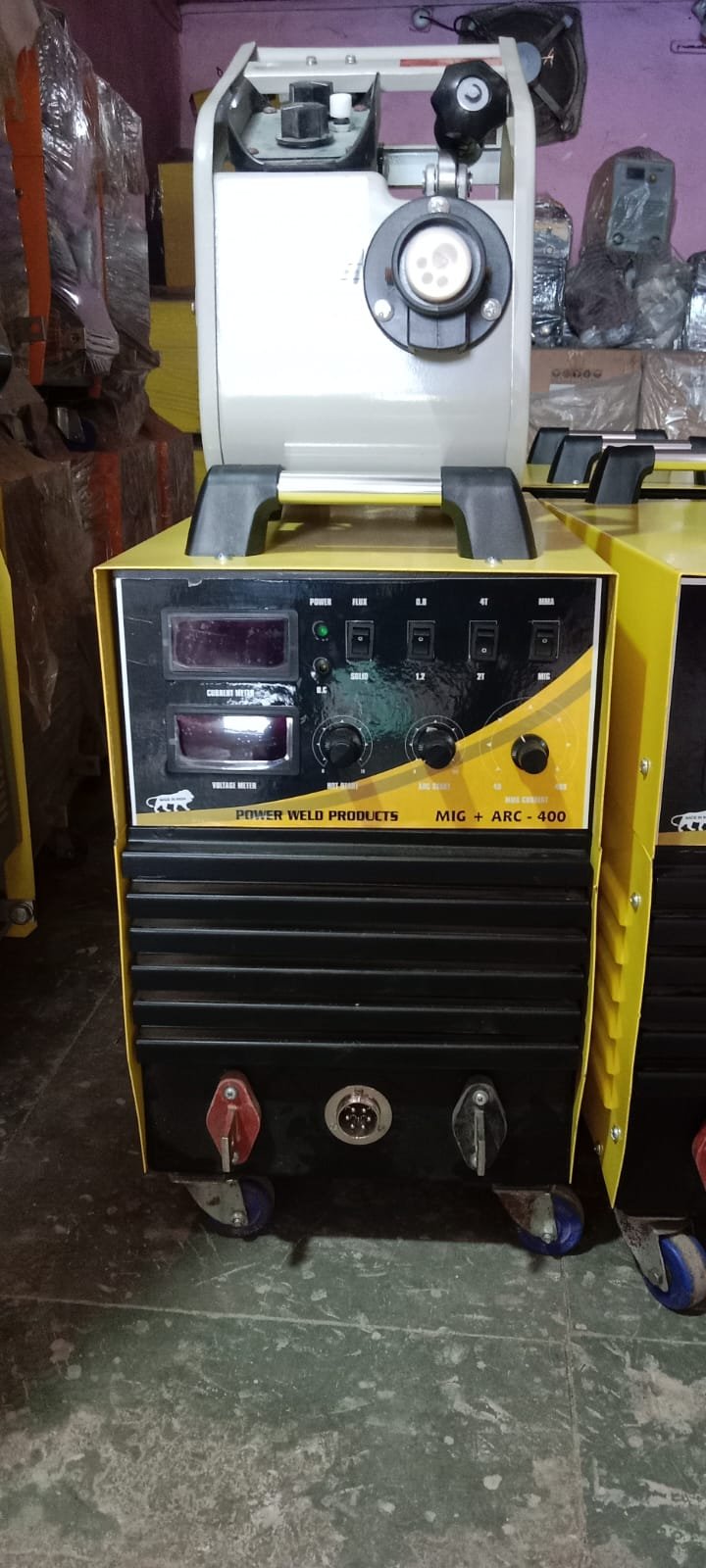

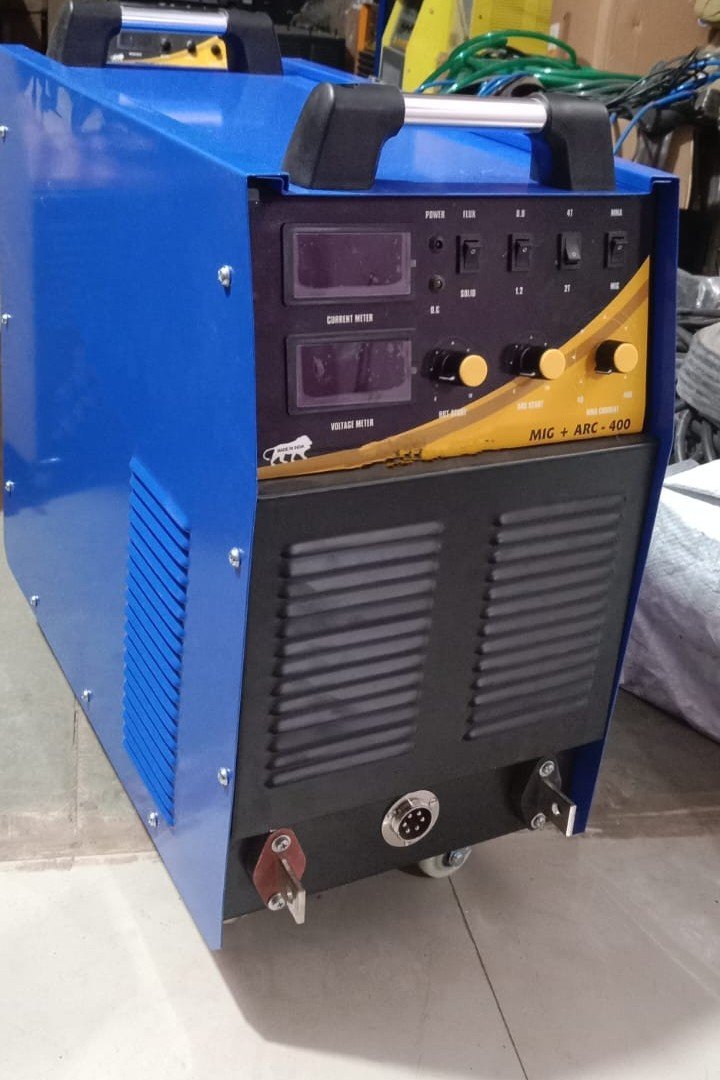

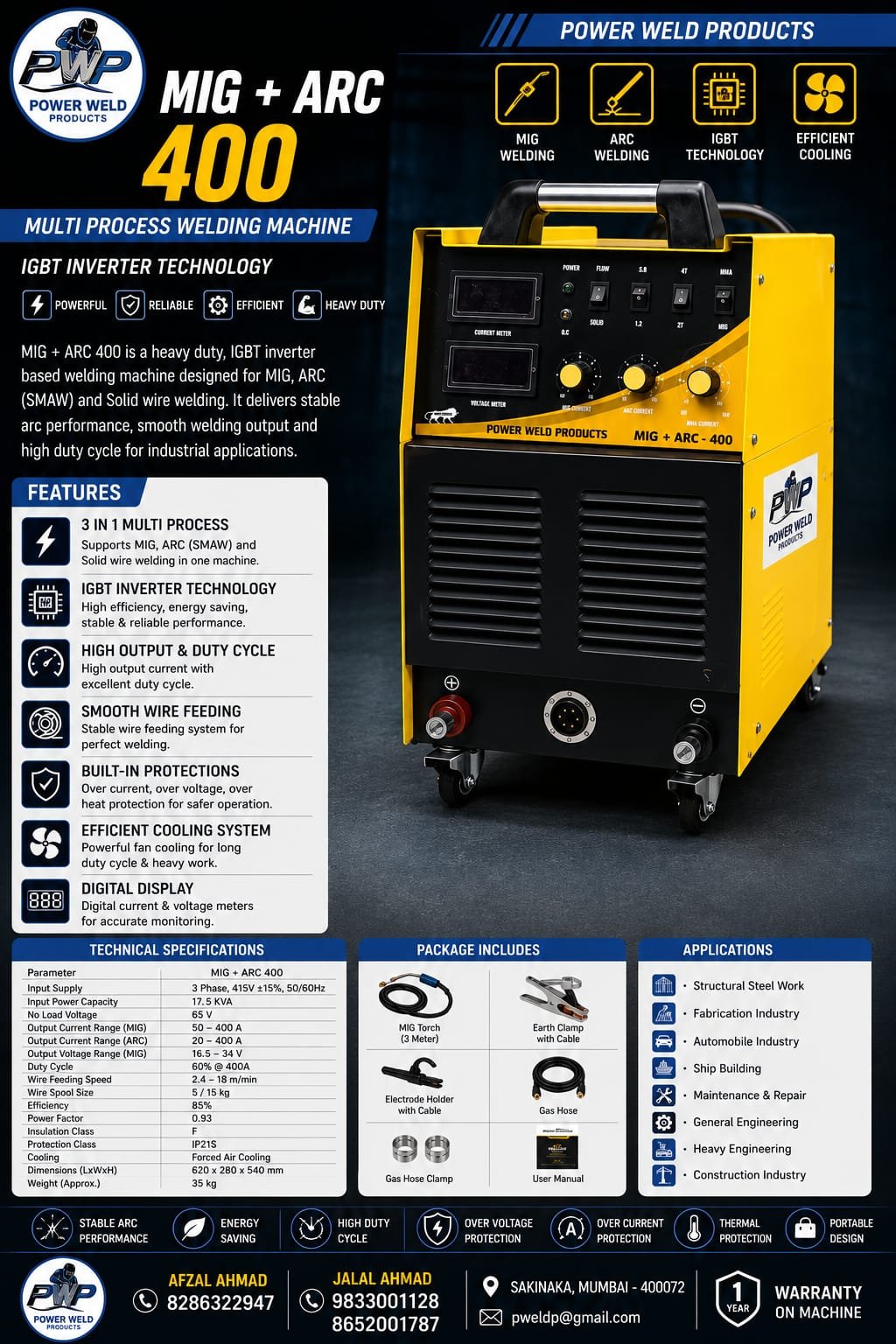

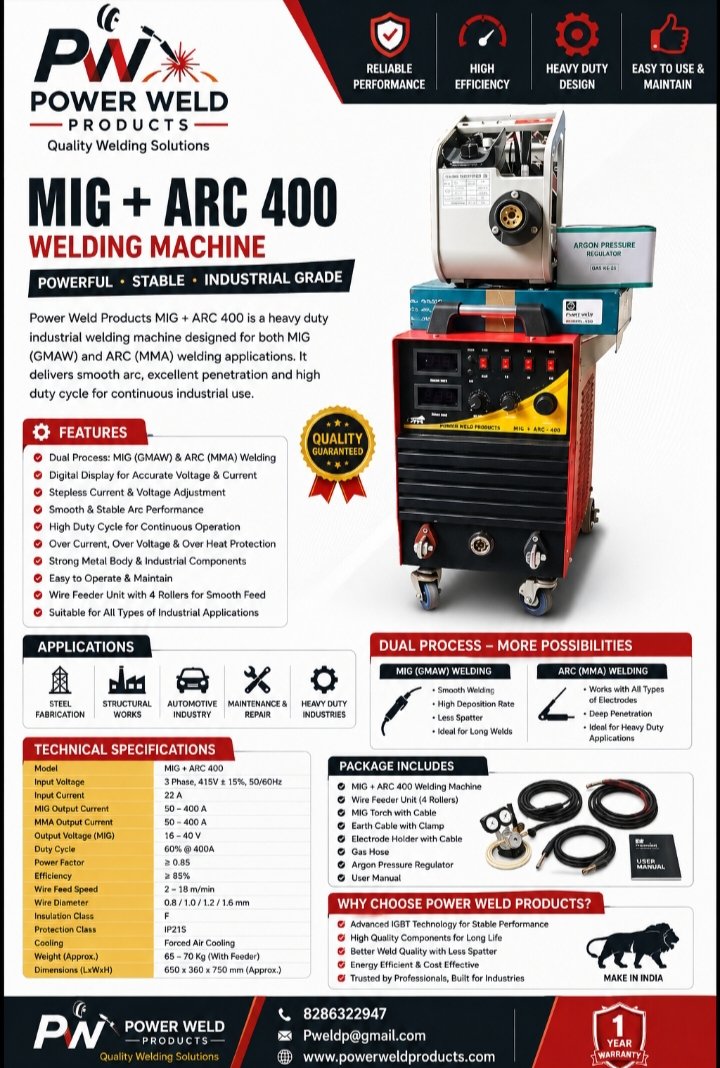

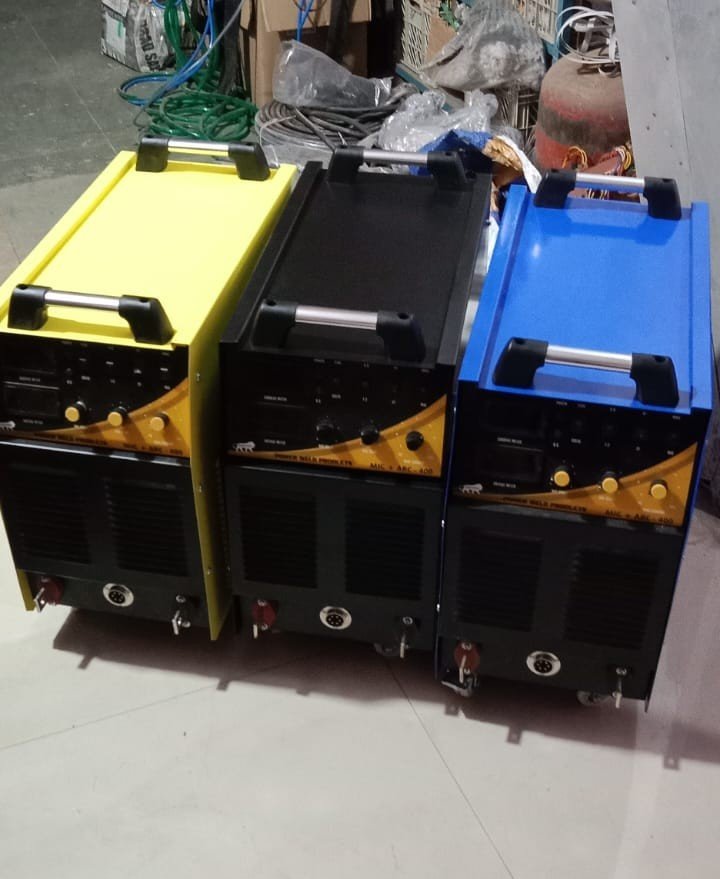

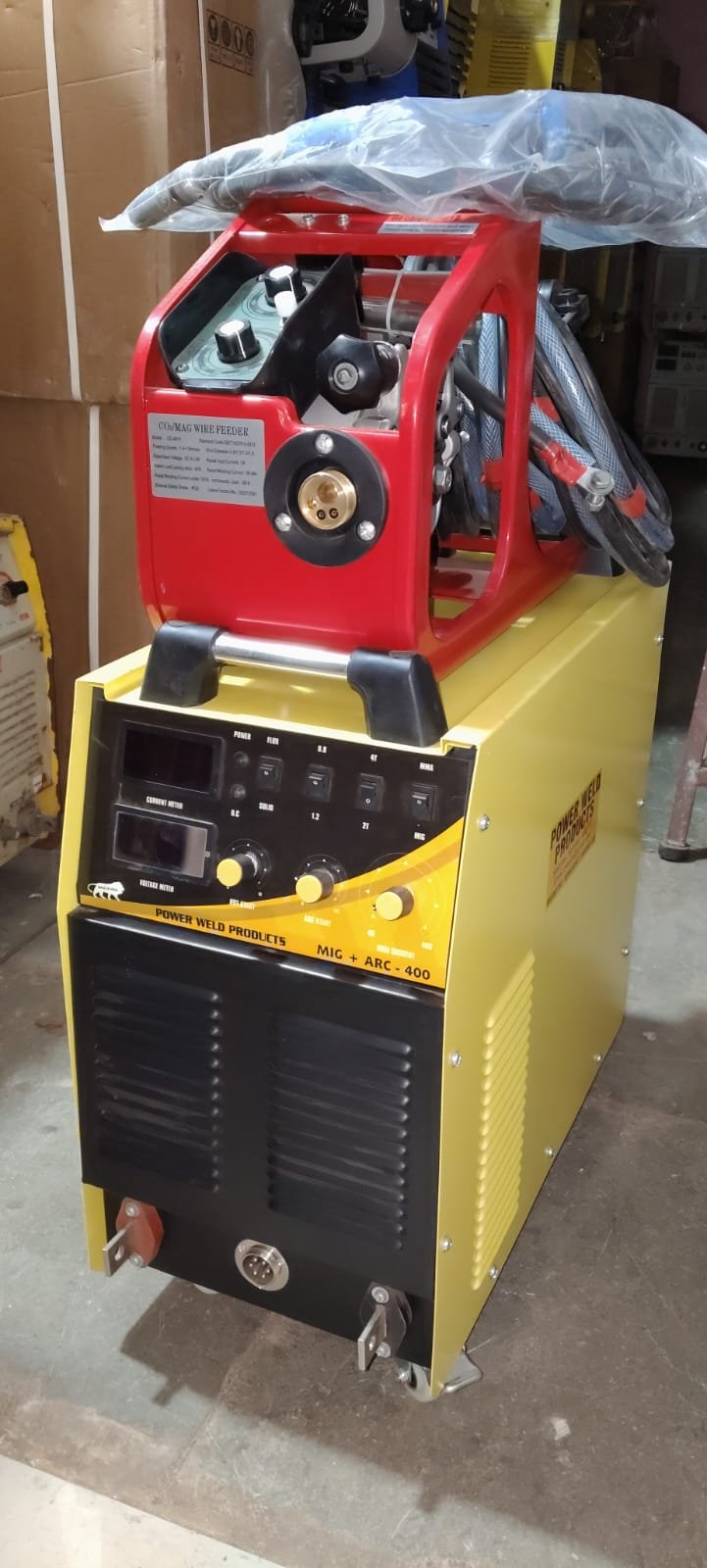

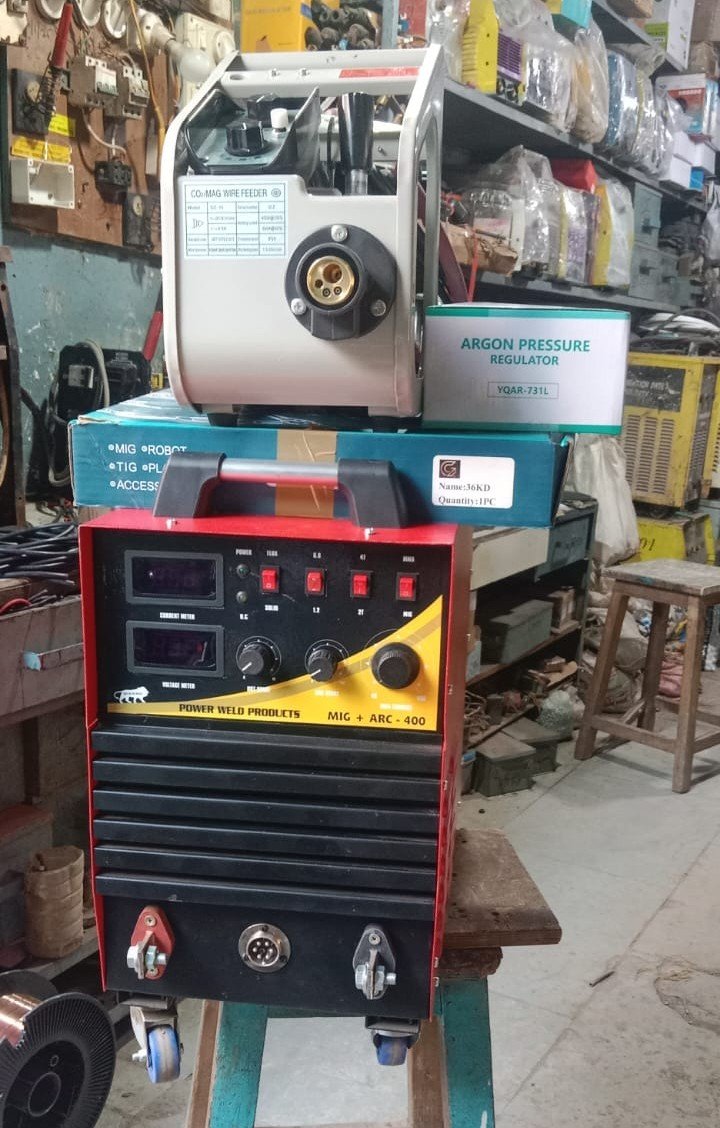

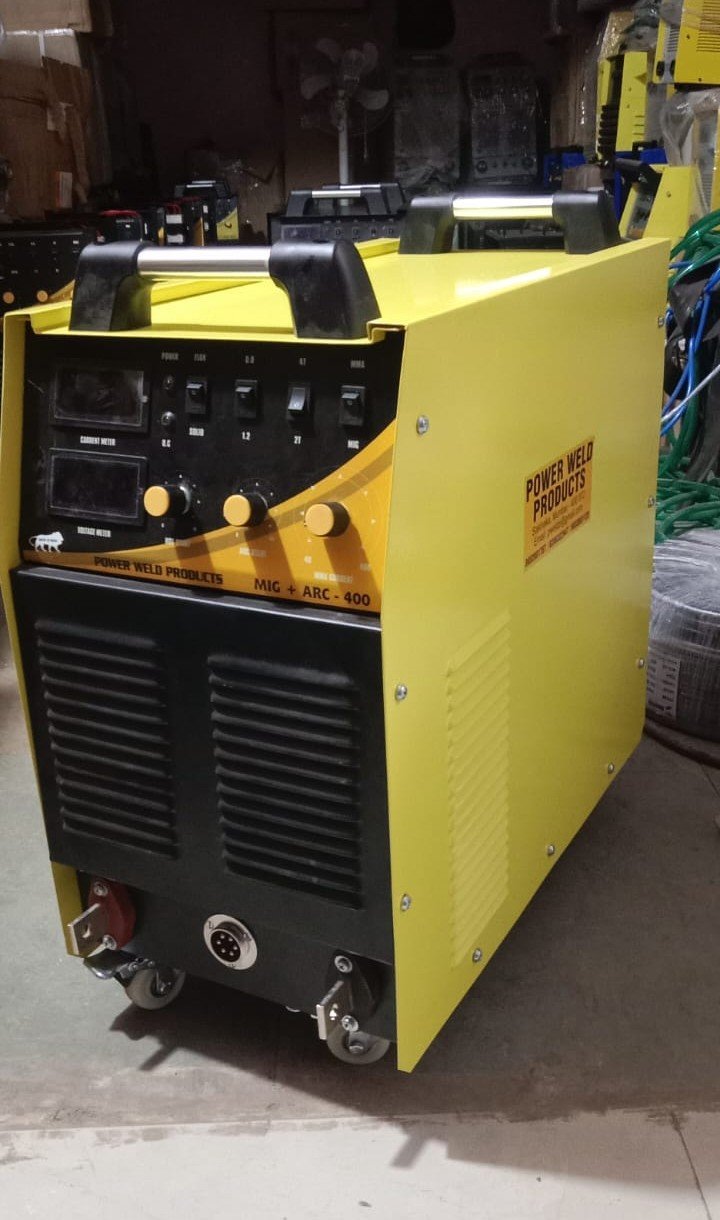

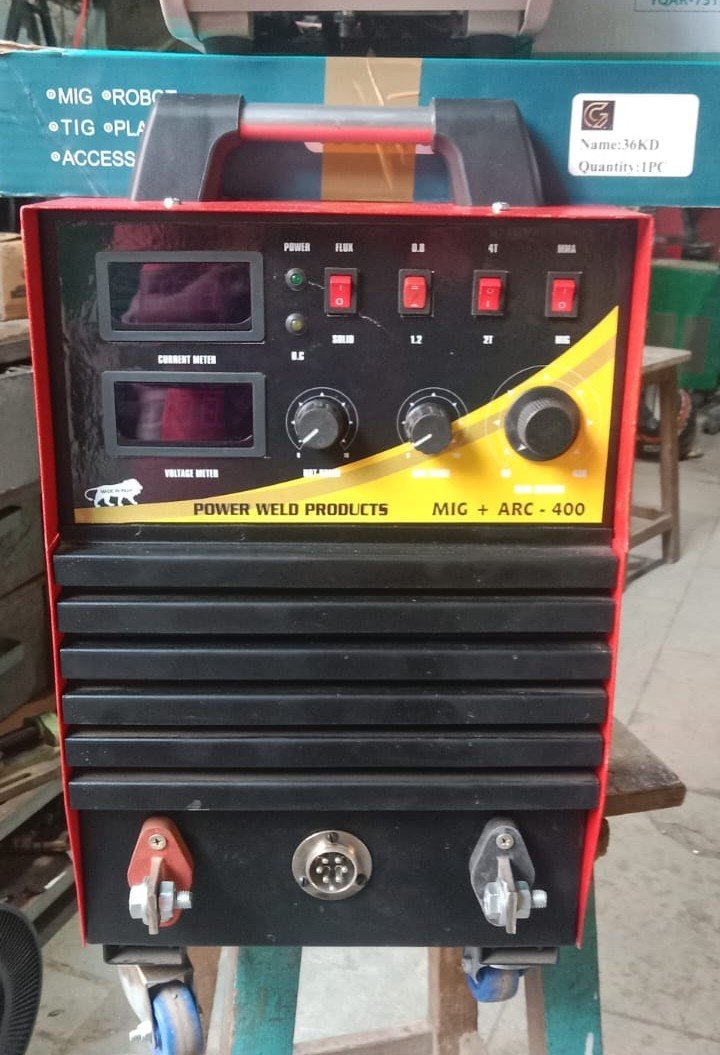

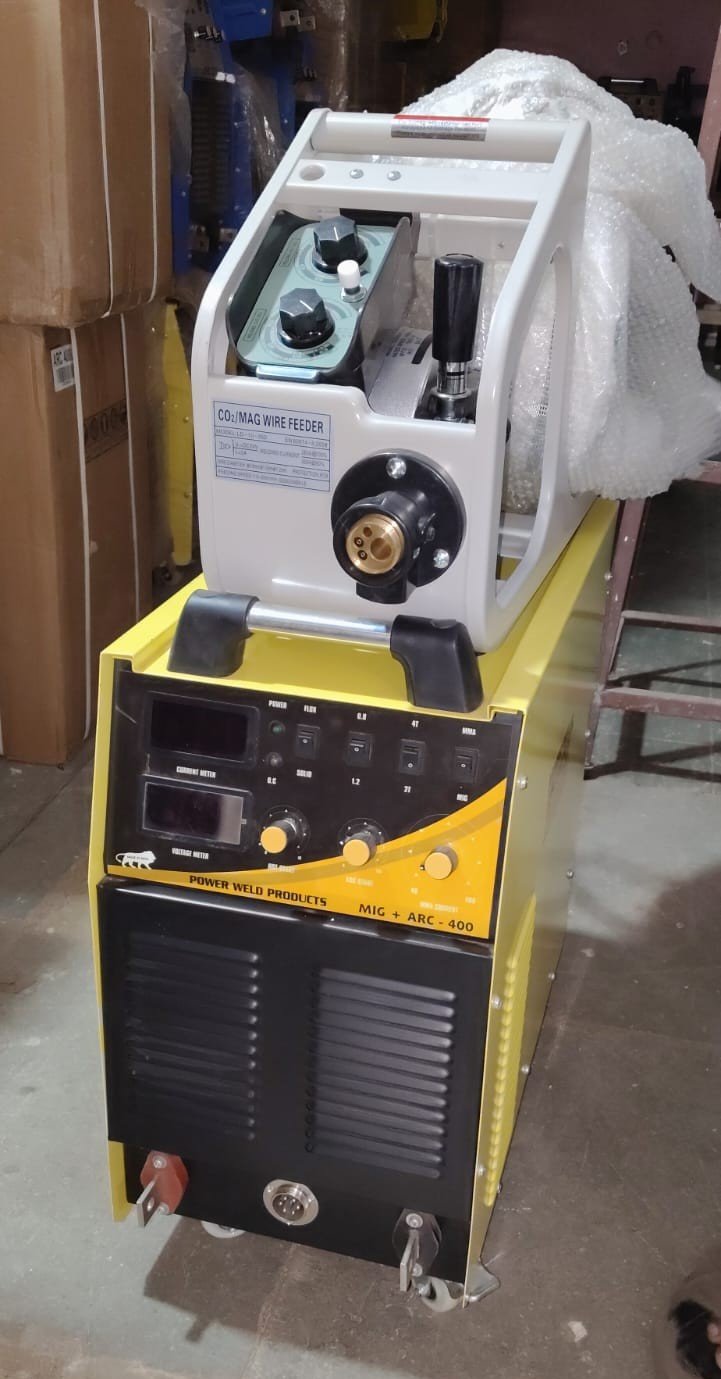

MIG + ARC 400
| Model | MIG + ARC 400 |
|---|---|
| Welding Process | MIG (GMAW) + ARC (MMA) Welding |
| Input Voltage | 3 Phase, 415V ±15%, 50/60 Hz |
| Input Current | 22 AMP |
| MIG Output Current | 50 – 400 AMP |
| MMA Output Current | 50 – 400 AMP |
| Output Voltage (MIG) | 16 – 40V |
| Duty Cycle | 60% @ 400 AMP |
| Power Factor | ≥ 0.85 |
| Efficiency | ≥ 85% |
| Wire Feed Speed | 2 – 18 m/min |
| Wire Diameter | 0.8 / 1.0 / 1.2 / 1.6 mm |
| Insulation Class | F |
| Protection Class | IP21S |
| Cooling System | Forced Air Cooling |
| Weight | 65 – 70 Kg (With Feeder) |
| Dimensions (L × W × H) | 650 × 360 × 750 mm (Approx.) |
